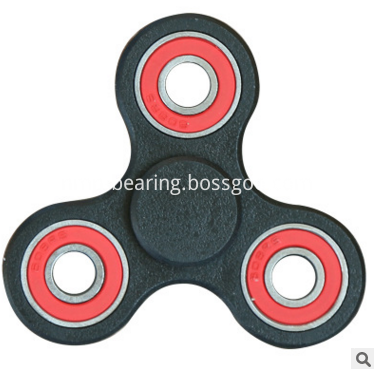

Hand finger spinner ball bearings 608-RS
Material: carbon steel, chrome steel etc.
Seal: rubber or plastic
Color: Red, blue, black, orange, green etc.
Precision: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9

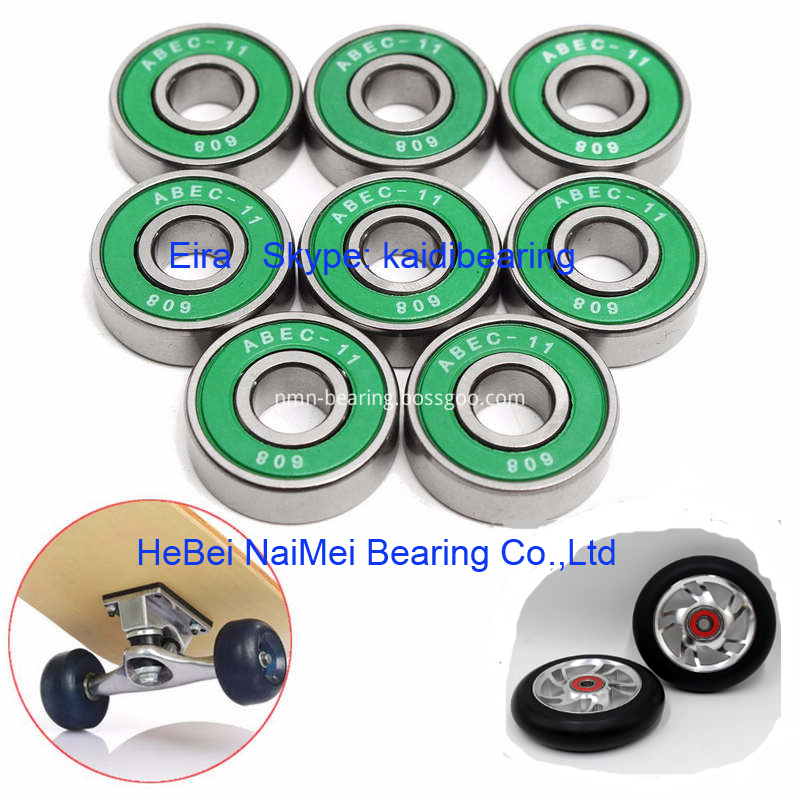

Usage: skateboard, fidget spinner etc.
Welcome to contact us, if have any inquiry.
Ucfl Two-Bolt Flanged Units(ucfl two-bolt flanged bearings): Hebei Naimei Bearing Co., Ltd. produces UCFL Series Mounted Bearings,2 bolts flange bearing. The bearing material can be chrome steel and stainless steel and the housing material could be cast iron or stainless steel. Please select the one that suits your demand. Insert Ball Bearing unit is consisted of a double sealed, single row bearing and one of housings(cast iron housing, stamping steel housing, stainless steel housing, engineering plastic housing, nodular cast iron housing, nickel plating housing, zinc alloy housing, etc). They are widely used inagricultural machinery, construction machinery, textile machinery, foodstuff machinery and conveying devices, etc.
Pillow block bearing are a form of mounted bearing used to provide load support for a rotating shaft. Selection of the appropriate bearings can be accomplished based on the shaf t size and the radial and thrust load requirements. Pillow block bearings are designed to support a shaft: the mounting surface is on a parallel line with the axis of the shaft. Elongated bolt holes in the base or feet of the unit allow for some adjustment and easy mounting of the pillow block bearing.
| Unit No. | Shaft | Dimensions(mm) | Bolt site (mm) | |||||||||
| d | ||||||||||||
| (In.) | (mm) | a | e | i | g | l | a | b | Bi | n | ||
| UCWFL201 UCWFL201-8 |
1/2 | 12
| 99 | 76.5 | 15 | 11 | 25.5 | 11.5 | 57 | 30.9 | 11.5 | M10 |
| UCWFL202 UCWFL202-10 |
5/8 | 15
| 99 | 76.5 | 15 | 11 | 25.5 | 11.5 | 57 | 30.9 | 11.5 | M10 |
| UCWFL203 UCWFL203-11 |
11/16 | 17 | 99 | 76.5 | 15 | 11 | 25.5 | 11.5 | 57 | 30.9 | 11.5 | M10 |
| UCFL204-12 UCFL204 | 3/4
| 20 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 12.7 | M10 |
| UCFL205-14 UCFL205-15 UCFL205 UCFL205-16 | 7/8 15/16
1 |
25
| 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35.7 | 14.3 | M14 |
| UCFL206-18 UCFL206 UCFL206-19 UCFL206-20 | 1-1/8
1-3/16 1-1/4 |
30
| 148 | 117 | 18 | 13 | 31 | 16 | 80 | 40.2 | 15.9 | M14 |
| UCFL207-20 UCFL207-21 UCFL207-22 UCFL207 UCFL207-23 | 1-1/4 1-5/16 1-3/8
1-7/16 |
35
| 161 | 130 | 19 | 15 | 34 | 16 | 90 | 44.1 | 17.5 | M14 |
| UCFL208-24 UCFL208-25 UCFL208 | 1-1/2 1-9/16
|
40 | 175 | 144 | 21 | 15 | 36 | 16 | 100 | 51.2 | 19 | M14 |
| UCFL209-26 UCFL209-27 UCFL209-28 UCFL209 | 1-5/8 1-11/16 1-3/4
|
45 | 188 | 148 | 22 | 16 | 38 | 19 | 108 | 52.2 | 19 | M16 |
| UCFL210-30 UCFL210-31 UCFL210 UCFL210-32 | 1-7/8 1-15/16
2 |
50
| 197 | 157 | 22 | 16 | 40 | 19 | 115 | 54.6 | 19 | M16 |
| UCFL211-32 UCFL211-34 UCFL211 UCFL211-35 | 2 2-1/8
2-3/16 |
55
| 224 | 184 | 25 | 18 | 43 | 19 | 130 | 58.4 | 22.2 | M16 |
| UCFL212-36 UCFL212 UCFL212-38 UCFL212-39 | 2-1/4
2-3/8 2-7/6 |
60
| 250 | 202 | 29 | 18 | 48 | 23 | 140 | 68.7 | 25.4 | M20 |
| UCFL213-40 UCFL213 | 2-1/2
|
65 | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 69.7 | 25.4 | M20 |
| UCFL214-44 UCFL214 | 2-3/4
|
70 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 75.4 | 30.2 | M20 |
| UCFL215-47 UCFL215 UCFL215-48 | 2-15/16
3 |
75
| 275 | 225 | 34 | 22 | 56 | 23 | 165 | 78.5 | 33.3 | M20 |
| UCFL216 |
| 80 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 83.3 | 33.3 | M22 |
| UCFL217-52 UCFL217 | 3-1/4
|
85 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 87.6 | 34.1 | M22 |
| UCFL218-56 UCFL218 | 3-1/2
|
90 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 96.3 | 39.7 | M22 |
Ucfl Two-Bolt Flanged Units,Ucfl Insert Ball Bearing,Agricultural Machine Bearing,Pillow Block Insert Bearing
Hebei Naimei Bearing Co., Ltd. , https://www.nmn-bearing.com
